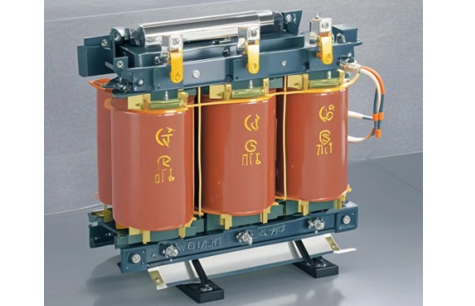

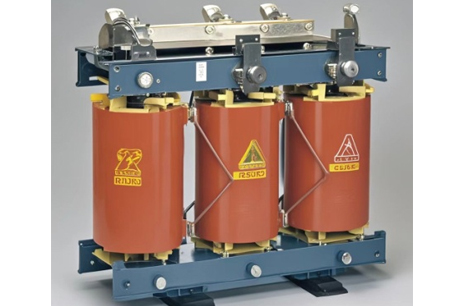

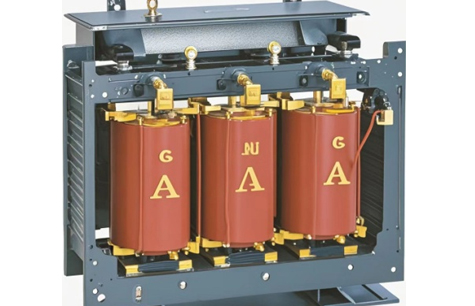

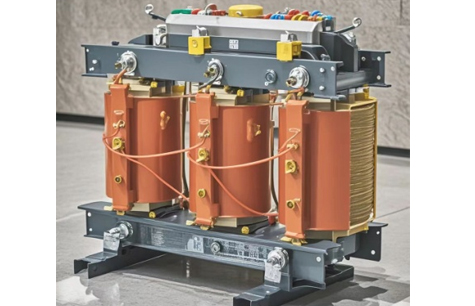

10kV amorphous alloy resin insulated dry-type transformer

△ Significant energy-saving effect, no-load loss is only 25%~35% of conventional products;

△ Superior performance, safe, reliable and environmentally friendly products;

△ Non-combustible, explosion-proof, pollution-free, high fireproof level, long coil life and recyclable;

△ High mechanical strength, strong short-circuit resistance, safe and reliable operation;

△ Easy installation and maintenance-free;

△ Small partial discharge, high insulation level and long product life;

△ Strong overload capacity, long-term safe operation under 120% load;

△ Fast investment recovery benefits.


  • Usage environment

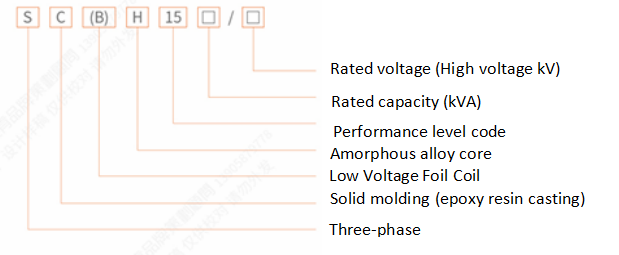

  • Model and meaning


Technical Parameter
Structural characteristics

Structural features

The low-voltage foil coil of this product is wound with copper foil, and the high-voltage coil is wound with H-grade high-strength silk-wrapped copper wire, and is encapsulated with glass fiber-reinforced epoxy resin to ensure moisture resistance and crack resistance: the iron core is rolled from non-grade alloy strip, with a shaped cross-section and a four-column-free structure.


Structural diagram
Configuration diagram
